RTU Product Line Overview
The company offers five specialized RTU families:
-

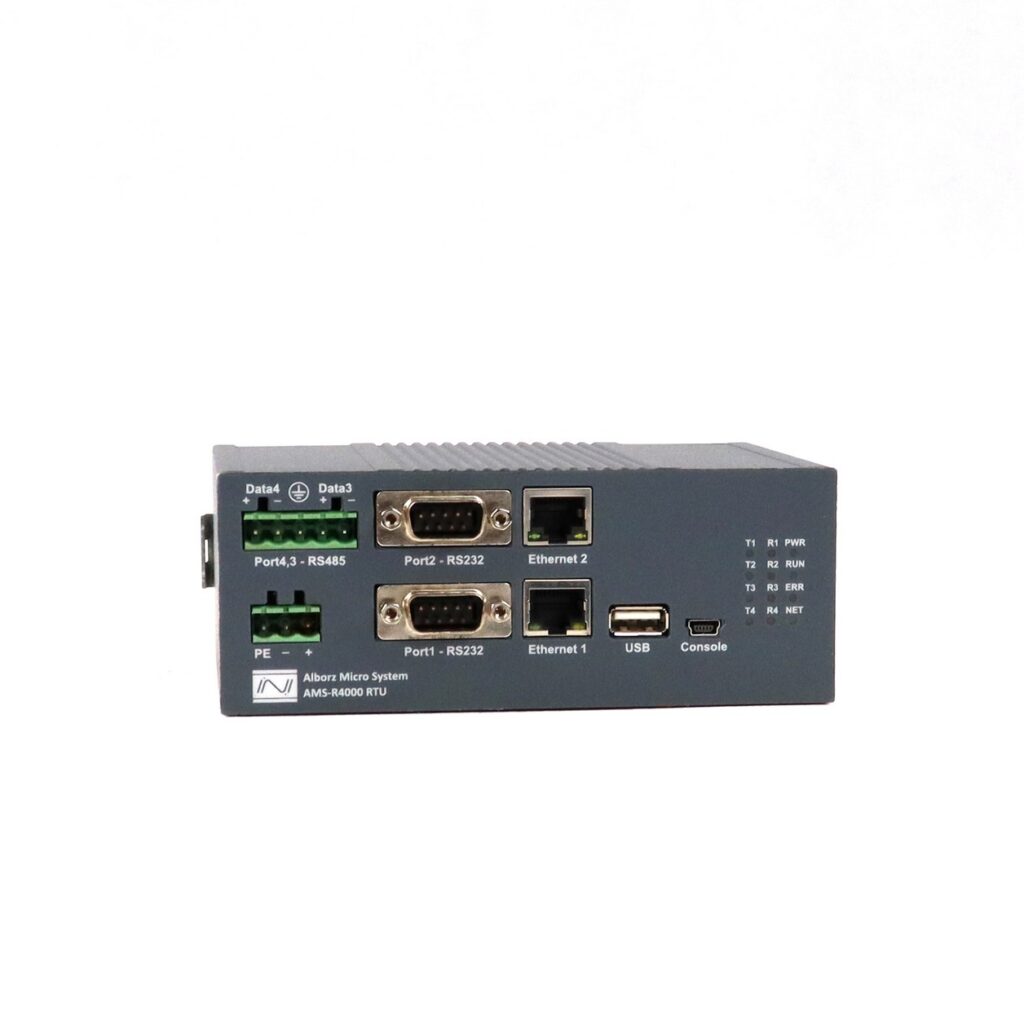

AMS-R4000 Series
-
AMS-R3000 Series (Compact)
-
MDL2000 Series
-
IDL1000 Series
-
RTU100 Series
AMS-R3000 Compact RTU Technical Specifications
Processing Power
-
1GHz processor
-
4GB Flash / 512MB RAM
-
Supports Function Block Programming & LUA Scripting
Communication Capabilities
-
Built-in 3G/4G cellular modem
-
Dual RS232 + RS485 ports
-
Ethernet port (fiber optic module compatible)
-
USB 2.0 Host
-
SMS send/receive functionality
Protocol Support
✔ DNP3.0
✔ IEC 60870-5-104
✔ Modbus TCP/RTU
✔ OPC UA
✔ S7 Connect (PLC integration)
I/O Configuration
-
Digital: 8 inputs / 4 outputs (2kV isolation)
-
Analog: 4x 12-bit inputs / 1x 16-bit output
-
Expandable via:
• AMS-E3011 (I/O module)
• AMS-P3012 (power/energy monitoring)
Data Management
-
SQL Lite database (internal flash/SD card up to 32GB)
-
Local data logging
Environmental Monitoring
-
2x temperature sensors (-60°C to +120°C)
-
Supports pressure/humidity sensors
Power & Indicators
-
Ultra-low power (<5W) – compatible with solar/battery
-
28 status LEDs for all I/O and system functions
Certifications
-
EMC compliance
-
Industrial-grade protection (IP65)
Typical Applications
• Remote substation monitoring
• Water distribution networks
• Oil & gas pipeline SCADA
