| Knowledge-Based Status | None |
|---|---|
| Production rate | mass production |
| Technology Readiness Level | TRL9 |
| brand | Fanavaran Alborz Andisheh |
Fanavaran Alborz Andisheh Company has been active since 2009 in the design and manufacturing of industrial and laboratory equipment. The company specializes in designing various mixing systems, including liquid dissolution, multiphase reactions, heat transfer, and mixing of high-viscosity fluids. Its services include specifying technical equipment details, preparing documentation, operation and maintenance guidance, troubleshooting, system redesign, and offering innovative solutions in mixing technology.

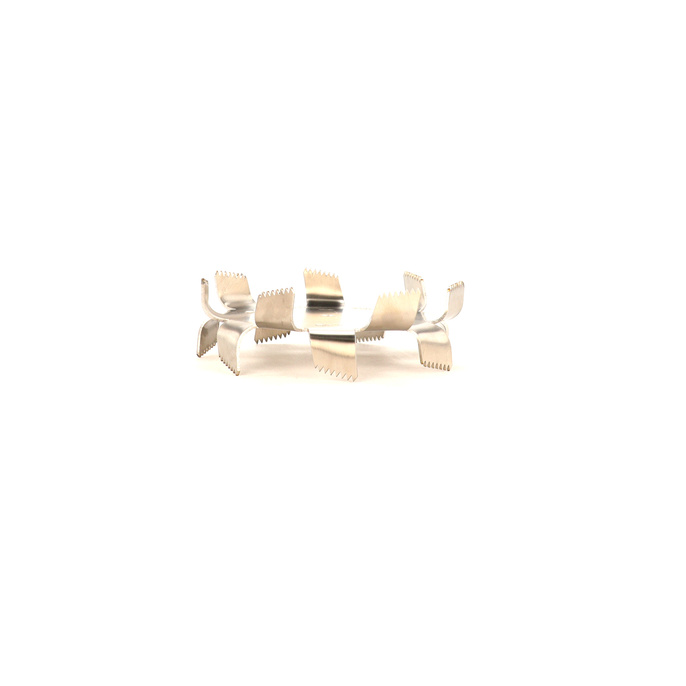

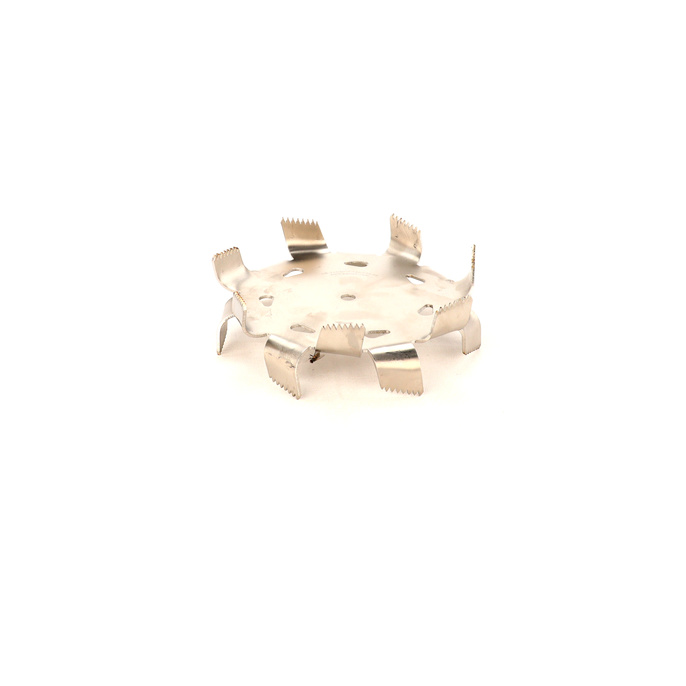

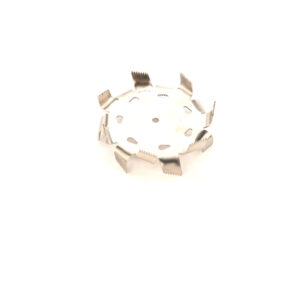

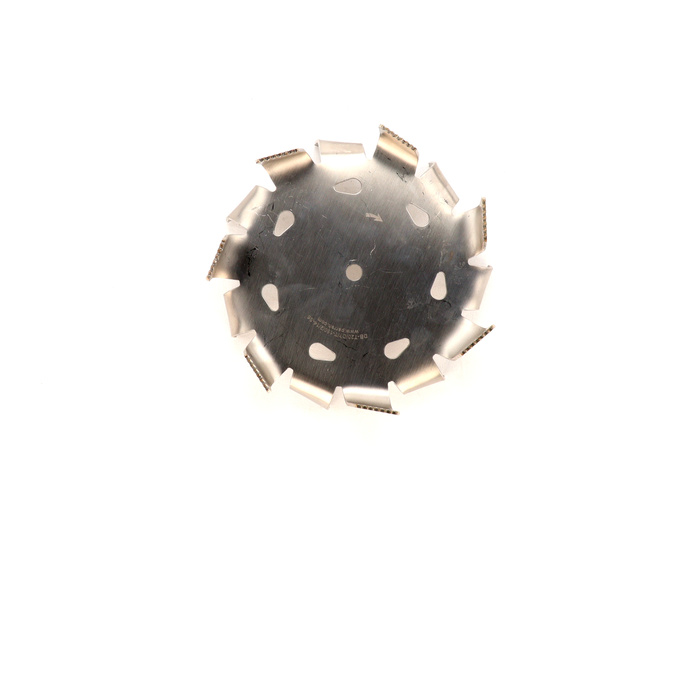

Dispersion Mixing Blade with Slanted Saw-Tooth (Aggressive Tooth Dispersion Blade)
Using dispersion blades in mixing induces high shear. It is a suitable choice for breaking up formed lumps or dispersing fine solid particles. Dispersion blades find applications in:
Paint
Adhesives
Chemical and construction materials
Plastics
Coatings
Ink
Rubber solutions
Pharmaceutical suspensions
Medical gels
Cosmetics and personal care
Oils and lubricants
PVC pastes
Ceramic slurries
Puréed foods, sauces, and syrups
This blade features bean-shaped holes and saw teeth, which increase efficiency and product quality. Dispersion blades can be offered in two variants: with hub and without hub, according to customer preference.
Two reinforcing washers (made of blade material) are provided for each blade. Standard diameters and thicknesses:
35 mm and 50 mm diameters — thickness 1 mm
75 mm, 100 mm, and 150 mm diameters — thickness 2 mm
200 mm diameter — thickness 3 mm
Custom tailoring available on request:
Neutral finishing
Surface grinding to finish roughness 0.8 to 0.2 µm
Applications for the dispersion blade with slanted saw-teeth:
Hair gels, creams, resins, coatings, glues, paints, purées, shampoos, viscous liquids
