| Knowledge-Based Status | None |
|---|---|
| brand | Amid Poya Pardaz |
| Production rate | mass production |
| Technology Readiness Level | TRL9 |
midco Medium & High Voltage Phasing Testers
This company specializes in medium and high voltage phase testers for power distribution systems.
Key Product Features:
Telescopic phase testers with adjustable handles (up to 220cm)
Wide voltage range coverage (400V to 400kV)
Compatible with standard hot sticks (in "Cato" models)
Dual-range low-voltage tester with:
✓ Digital display
✓ LED warning indicators
Technical Advantages:
• Precision voltage detection for HV/MV applications
• Ergonomic designs for utility line workers
• Safety-certified insulation materials
This device performs a reliable test using a two-polar method (phase to neutral or phase-to-phase) and measures the voltage with high accuracy, displaying it on a three-digit LED display.
Additionally, the unit is equipped with a step LED indicator that remains active even when the battery is depleted, alerting the user to dangerous voltages.

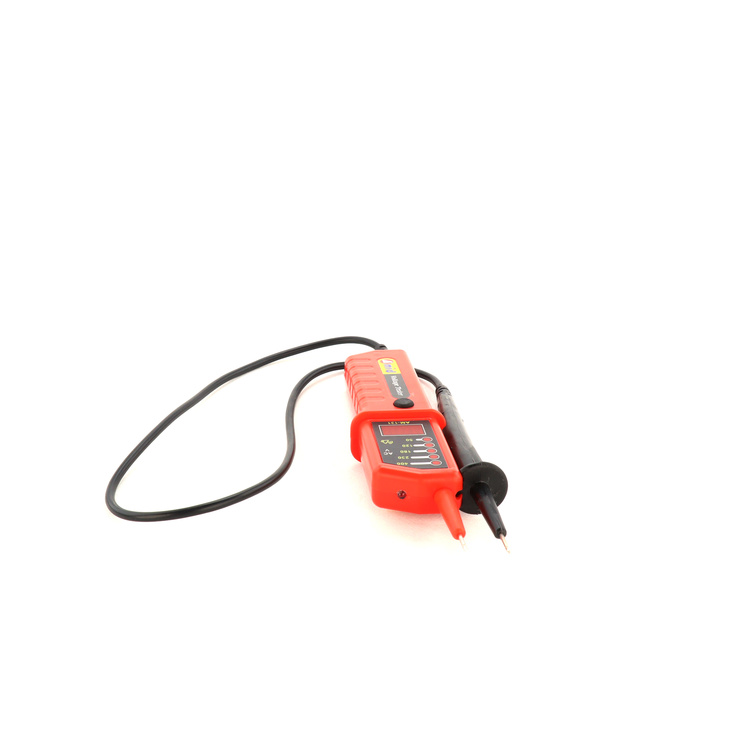

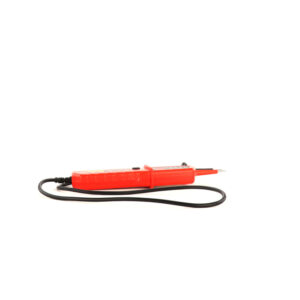

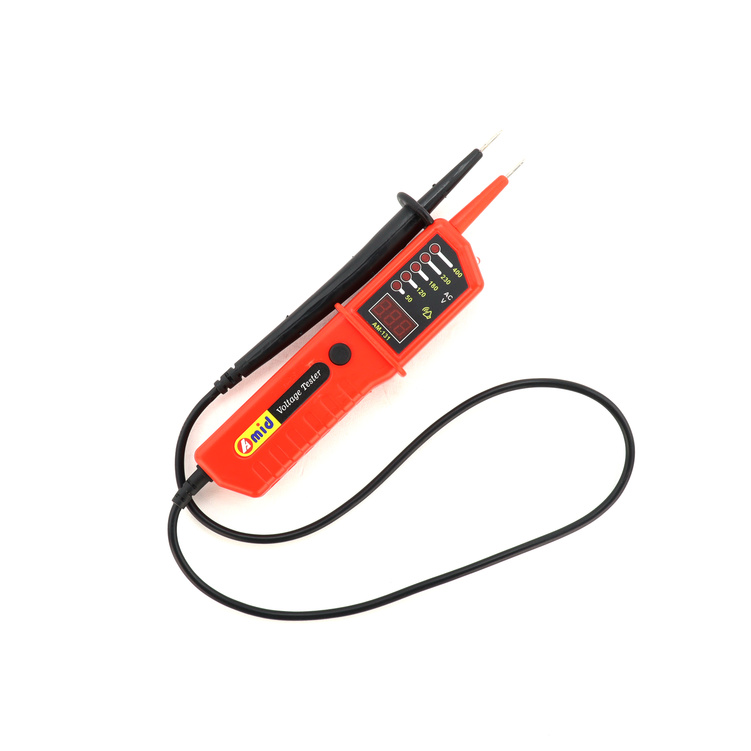

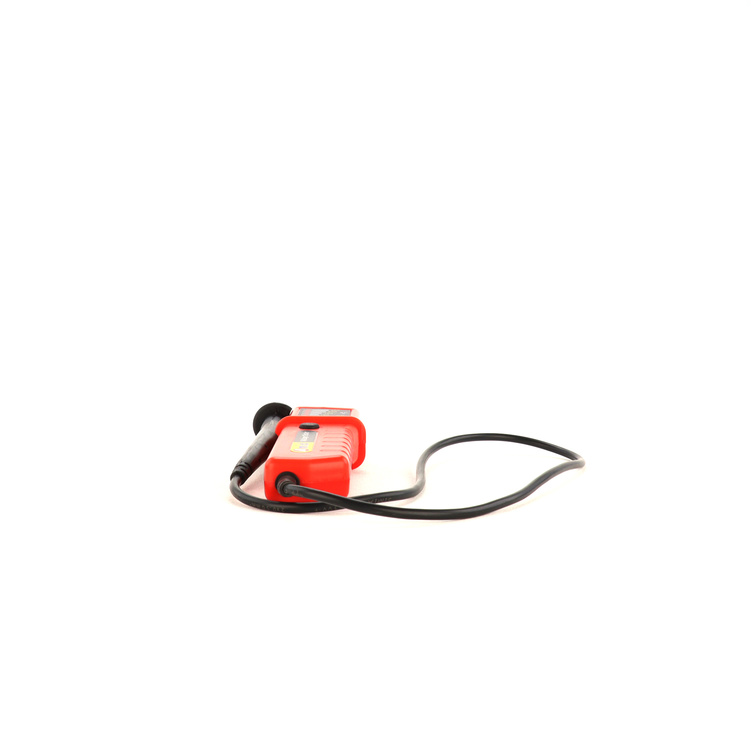

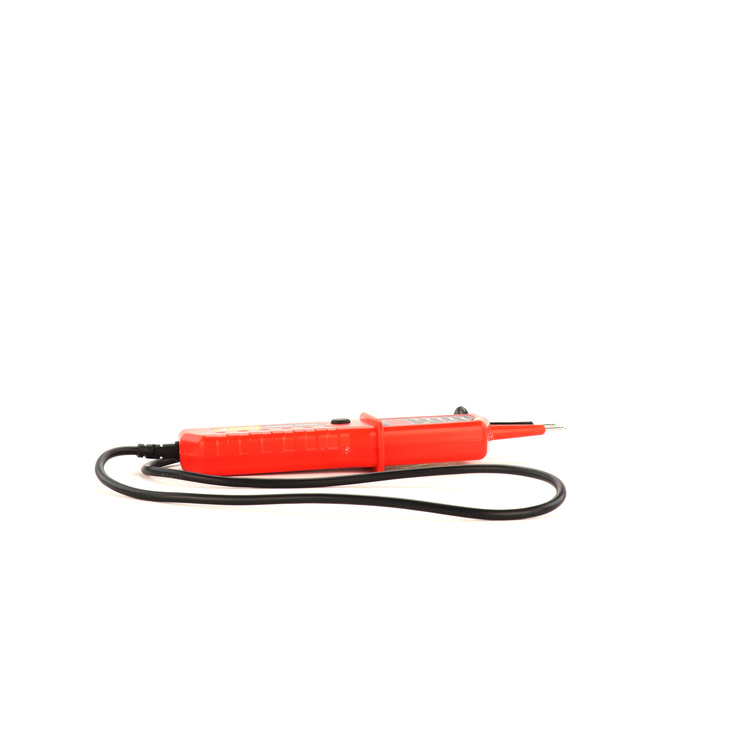

The low-voltage double-end voltage tester (tester) is designed for voltage levels up to 400 V and is used to measure voltage and test the energized status of low-voltage power lines and equipment. Unfortunately, electricians often rely on screwdriver-style testers, which are not reliable at all; however, this device uses a two-polar method (phase–neutral or phase–phase) to perform a safe test and display the voltage on the segmented display with high precision.
Moreover, the device includes a step LED indicator that continues to operate even when the battery is exhausted, keeping the user informed of dangerous voltages.
Device sections:
Step LED indicator
Probe L1 (secondary)
Probe L2 (primary)
LED flashlight
Three-digit display
Flashlight switch
